Grids With Column Spans

This guide will show how to use the grid creator to produce PDF pages that have grids layout with columns spans.

Before you begin #

You should get your API key from your UniCloud account.

If this is your first time using UniPDF SDK, follow this guide to set up a local development environment.

Clone the project repository #

In your terminal, clone the examples repository. It contains the Go code we will be using for this guide.

git clone https://github.com/unidoc/unipdf-examples.git

Navigate to the grid folder in the unipdf-examples directory.

cd unipdf-examples/grid

How it works #

The code begins by importing the necessary dependencies. Then the init function sets up the license key.

The main function is defined in lines 28-74. It starts by instantiating the creator object and specifying the page margins in lines 29-30. Then the creator.Grid object is instantiated by specifying the number of columns we want to use using the creator.NewGrid() method. Then a new row is created using the grid object in line grid.NewRow() in line 36. A a cell that spans 3 columns and one row is created using the row.NewMultiCell(3, 1) in line 39. This method returns a pointer to creator.GridCell which can then be populated with content. This is done in lines 45-57.

An image is read from file, then an creator.Image is created in line 49. Lines 54-55, set the alignment properties of the cell. Then in line 57, the content of the cell is set with the image using cell.SetContent(img). In lines 60-63, a second row is added and populated with text using the helper function AddLoremIpsumCell defined in lines 76-89.

In line 65, the grid is drawn using the Draw method of the creator object. and finally the document is written to file in line 71.

Run the code #

To run this code, use this command:

go run pdf_grid_colspan.go

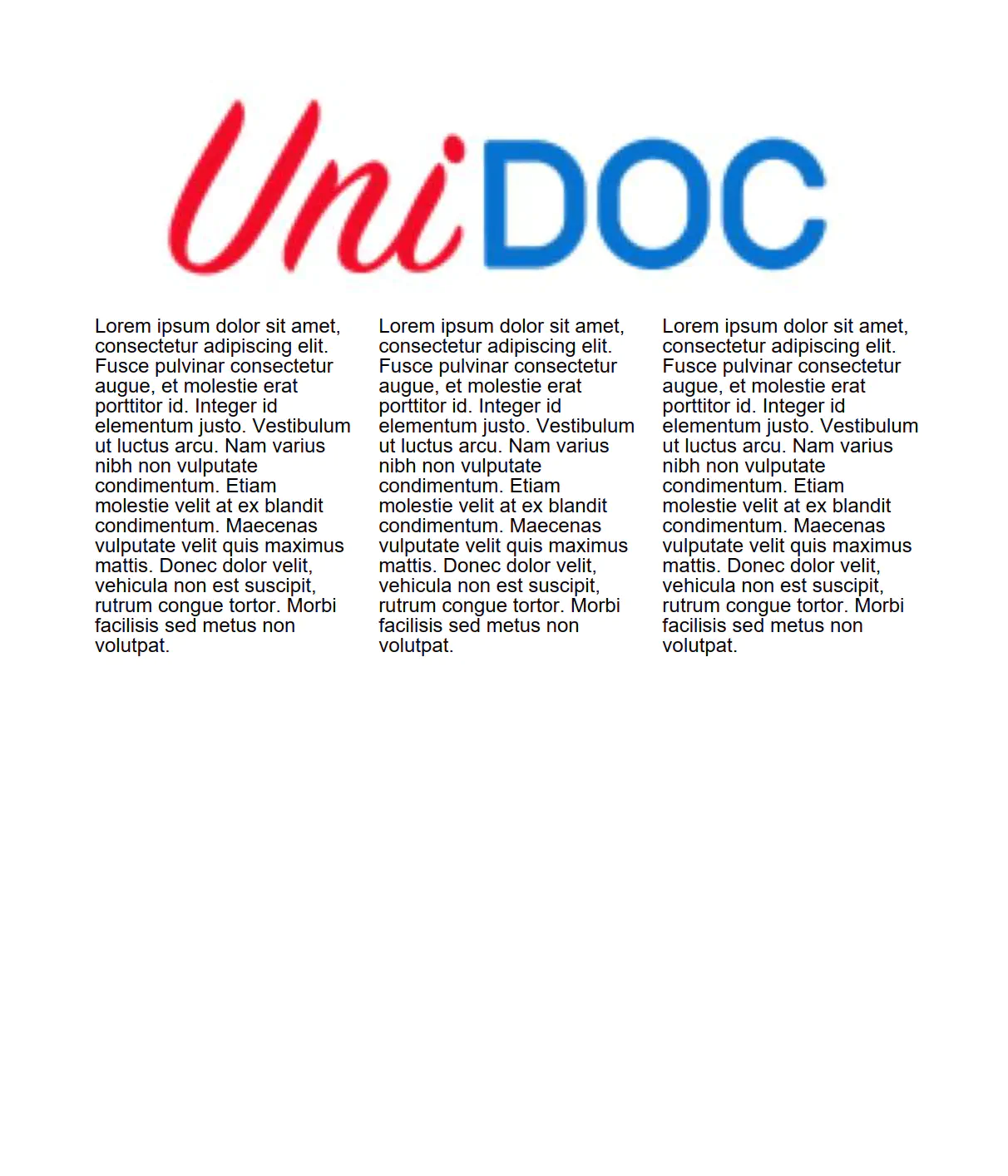

Sample output #
