Bullets and Numbering

A list in a Word document is not a container. It is an ordinary run of paragraphs that each point at a numbering definition and a level within it, and Word draws the marker. So making a list means creating a definition in numbering.xml, then setting two properties on every paragraph that belongs to it.

Two paragraphs that reference the same definition and level continue one counter. Two paragraphs that reference different definitions each start at 1. That single fact decides most of how you structure the code.

Reuse the built-in definition or add your own

document.New() calls Numbering.InitializeDefault(), which installs one hybrid-multilevel definition with nine bullet levels. Levels 0 through 8 use the Symbol font, indent by half an inch per level, and hang by a quarter inch.

Definitions() on a document opened with document.Open() returns whatever the file already contains, which may be nothing at all. Index into it only on a document you created.

Doing it

nd := doc.Numbering.AddDefinition()

lvl := nd.AddLevel()
lvl.SetFormat(wml.ST_NumberFormatDecimal)
lvl.SetAlignment(wml.ST_JcLeft)
lvl.SetText("%1.")
lvl.Properties().SetLeftIndent(0.5 * measurement.Inch)

for _, s := range []string{"Go", "Java", "PHP"} {
    para := doc.AddParagraph()
    para.SetNumberingDefinition(nd)
    para.SetNumberingLevel(0)
    para.AddRun().AddText(s)
}

AddLevel assigns level numbers in call order starting at 0, so the first level you add is the one SetNumberingLevel(0) refers to. Both paragraph calls are required: the godoc on SetNumberingLevel says the definition must also be set, and a paragraph with a level but no definition gets no marker.

SetText takes the level text pattern, where %1 is the counter for the first level, %2 for the second, and so on. "%1." gives 1., 2., 3.; "%1.)" gives 1.); "%1.%2." on the second level gives 1.1.. Passing an empty string removes the pattern entirely.

Indentation belongs to the level, not the paragraph. lvl.Properties().SetLeftIndent returns ParagraphStyleProperties, so the indent applies to every paragraph on that level without touching them individually.

Nesting

The example nests by creating a fresh definition for each sub-list rather than adding levels 1 and 2 to the parent definition. That is why the sub-lists in the output restart at i. under every parent while the parent list runs 1, 2, 3: each sub-list is a separate definition with its own counter, and the visual nesting comes from the larger left indent set on its level.

Adding levels 1 and 2 to a single definition is the other option, and it gives you one definition whose counters stay in step. Use Numbering.Restart when you want a later list to reuse the same level formatting but begin again at 1; it allocates a new definition carrying the existing levels.

Limitations

SetNumberingDefinitionByID names its parameter abstractNumberID, but the value is written straight into w:numId. Those are two different identifier spaces in numbering.xml, and the abstract ID is what NumberingDefinition.AbstractNumberID() returns. Prefer SetNumberingDefinition, which resolves the mapping for you and creates the w:num entry if it is missing.

SetFormat, SetAlignment and SetText write only what you give them. A level with no format set falls back to whatever Word does with an absent w:numFmt, which is not the same as choosing ST_NumberFormatBullet. Set the format explicitly on every level you add.

Numbering restarts across sections and list continuation across an existing document’s own definitions are not exposed by these calls. If you need those, you are editing numbering.xml through Numbering.X().

Run the example

The example builds a three-level numbered list from a slice of maps, then drops to the built-in bullet definition to show levels 1 through 4. Start with the first AddDefinition call and follow how ndChildren and ndChild are created inside the loops.

git clone https://github.com/unidoc/unioffice-examples.git
cd unioffice-examples/document/bullet-and-numbering
go run main.go

If this is your first time using UniOffice, follow the getting started guide to create an API key and set up your development environment.

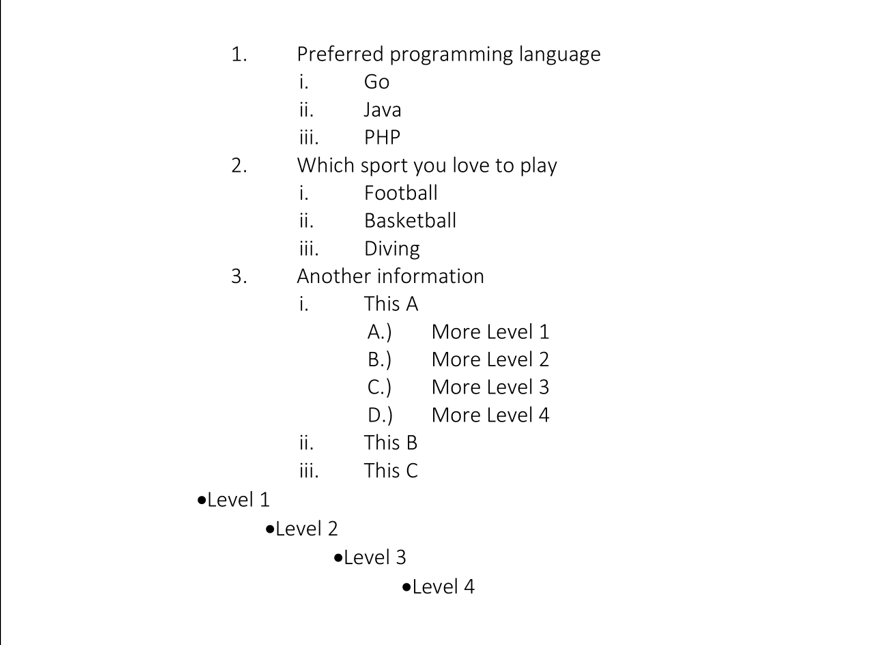

Sample output
