Conditional Formatting

Conditional formatting is evaluated by the viewing application, not written into the cells. Sheet.AddConditionalFormatting claims one or more ranges, and the rules you add to it are stored against those ranges. The cell styles you set elsewhere still apply; a conditional rule paints over them when it matches.

A rule is one of four shapes, and which one you pick determines which setters are meaningful.

Only the comparison shape uses a differential style. The other three carry their own colors and thresholds.

cfmt := sheet.AddConditionalFormatting([]string{"A1:E5"})

r := cfmt.AddRule()
r.SetType(sml.ST_CfTypeCellIs)
r.SetOperator(sml.ST_ConditionalFormattingOperatorLessThan)
r.SetConditionValue("4")

green := ss.StyleSheet.AddDifferentialStyle()
green.Fill().SetPatternFill().SetBgColor(color.SuccessGreen)
r.SetStyle(green)

AddRule already calls InitializeDefaults, which sets the type to ST_CfTypeCellIs and the operator to ST_ConditionalFormattingOperatorGreaterThan, so a plain comparison rule only needs the value and the style. Adding a second rule to the same ConditionalFormatting is how you get two bands over one range, as the example does with green below 4 and red above 7.

The thresholds for scales, icons and bars come from AddFormatValue, which takes a ST_CfvoType and a string. ST_CfvoTypeMin and ST_CfvoTypeMax ignore the string and derive the bound from the data, which is why the example passes "0" alongside them.

Limitations

SetColorScale, SetIcons and SetDataBar each clear the rule first, wiping the operator and any condition value already set. Call them before you configure anything else on that rule, never after.

DifferentialStyle exposes only Fill(). You can change a matching cell’s background and nothing else through this API. Font, border and number format overrides that Excel offers in the same dialog are not reachable.

AddRule sets each rule’s priority to its position within its own ConditionalFormatting block, restarting at 2 for every call to AddConditionalFormatting. Two blocks on the same sheet therefore end up sharing priority numbers. That is harmless while their ranges are disjoint, as in the example; if your ranges overlap, call SetPriority yourself to say which rule wins.

Condition values are strings, written into the rule verbatim as a formula. They are not parsed or validated, so a typo produces a rule that silently never matches.

SetIcons already selects ST_IconSetType3TrafficLights1 and SetDataBar already turns on the value display with a 10 to 90 percent bar length, so the explicit calls in the example are restating defaults. Data bars need exactly two format values, a minimum and a maximum.

Run the example

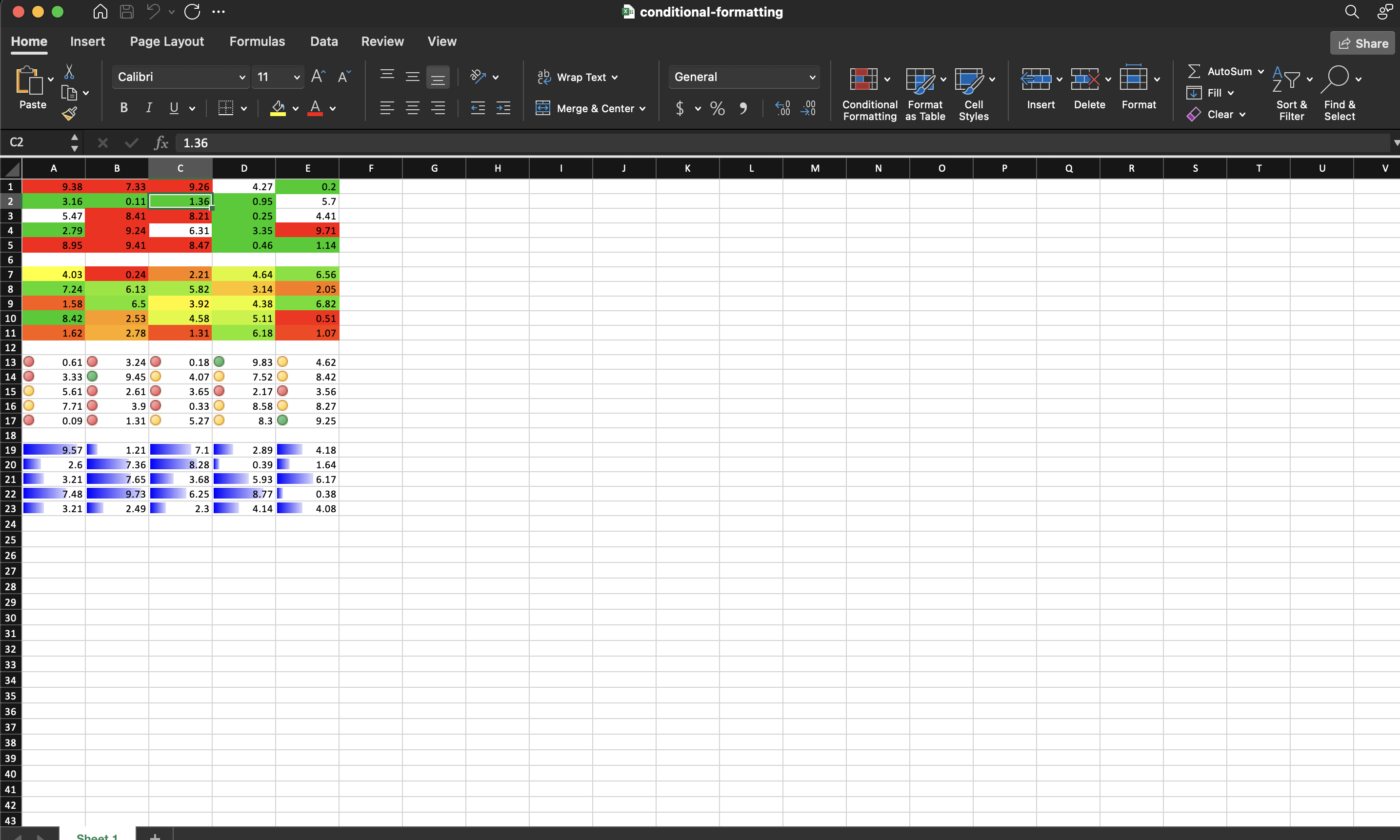

The example fills four blocks of random numbers and gives each a different rule shape: comparison bands on A1:E5, a red-yellow-green color scale on A7:E11, traffic light icons on A13:E17, and blue data bars on A19:E23.

git clone https://github.com/unidoc/unioffice-examples.git
cd unioffice-examples/spreadsheet/conditional-formatting
go run main.go

If this is your first time using UniOffice, follow the getting started guide to create an API key and set up your development environment.

Sample output
