Freeze Rows and Columns

Freezing pins the top row, the leftmost column or both so they stay on screen while the rest of the sheet scrolls. It is a view setting, not a data one: nothing about the cells changes, only how Excel or LibreOffice draws the window when the file is opened.

Sheet.SetFrozen covers the common cases. Anything else goes through the sheet view directly.

Freezing the first row and column

ss := spreadsheet.New()
defer ss.Close()
sheet := ss.AddSheet()

// ... add rows and cells ...

sheet.SetFrozen(true, true)

Order does not matter. SetFrozen writes a sheet view, and sheet views are independent of the cell data, so freezing before or after populating the sheet produces the same file.

To freeze more than one row, set the split point yourself. This is what SetFrozen does internally, with the split values fixed at 1:

v := sheet.InitialView()
v.SetState(sml.ST_PaneStateFrozen)
v.SetYSplit(3)
v.SetTopLeft("A4")

The pane state constants live in github.com/unidoc/unioffice/v2/schema/soo/sml.

SetTopLeft names the first cell of the scrolling region, so it has to agree with the split values. Set SetYSplit(3) and leave the top left at A1 and the result is a frozen pane that scrolls to the wrong place.

SetState also accepts sml.ST_PaneStateSplit for a resizable split bar instead of a frozen one, and sml.ST_PaneStateFrozenSplit. SetFrozen always uses ST_PaneStateFrozen.

Limitations

SetFrozen discards existing sheet views before adding its own. Zoom level, ruler visibility and anything else you configured through AddView or InitialView is lost if you call it afterwards. Freeze first, then adjust the view it created.

Only the first row and the first column can be frozen through SetFrozen. There is no argument for a deeper split.

The pane is per sheet, so a workbook with several sheets needs the call repeated on each one.

Run the example

The example builds a 100 by 100 sheet with a header row and a header column of random numbers, then freezes both. The commented-out block below the SetFrozen call shows the equivalent sheet view calls.

git clone https://github.com/unidoc/unioffice-examples.git
cd unioffice-examples/spreadsheet/freeze-rows-cols
go run main.go

If this is your first time using UniOffice, follow the getting started guide to create an API key and set up your development environment.

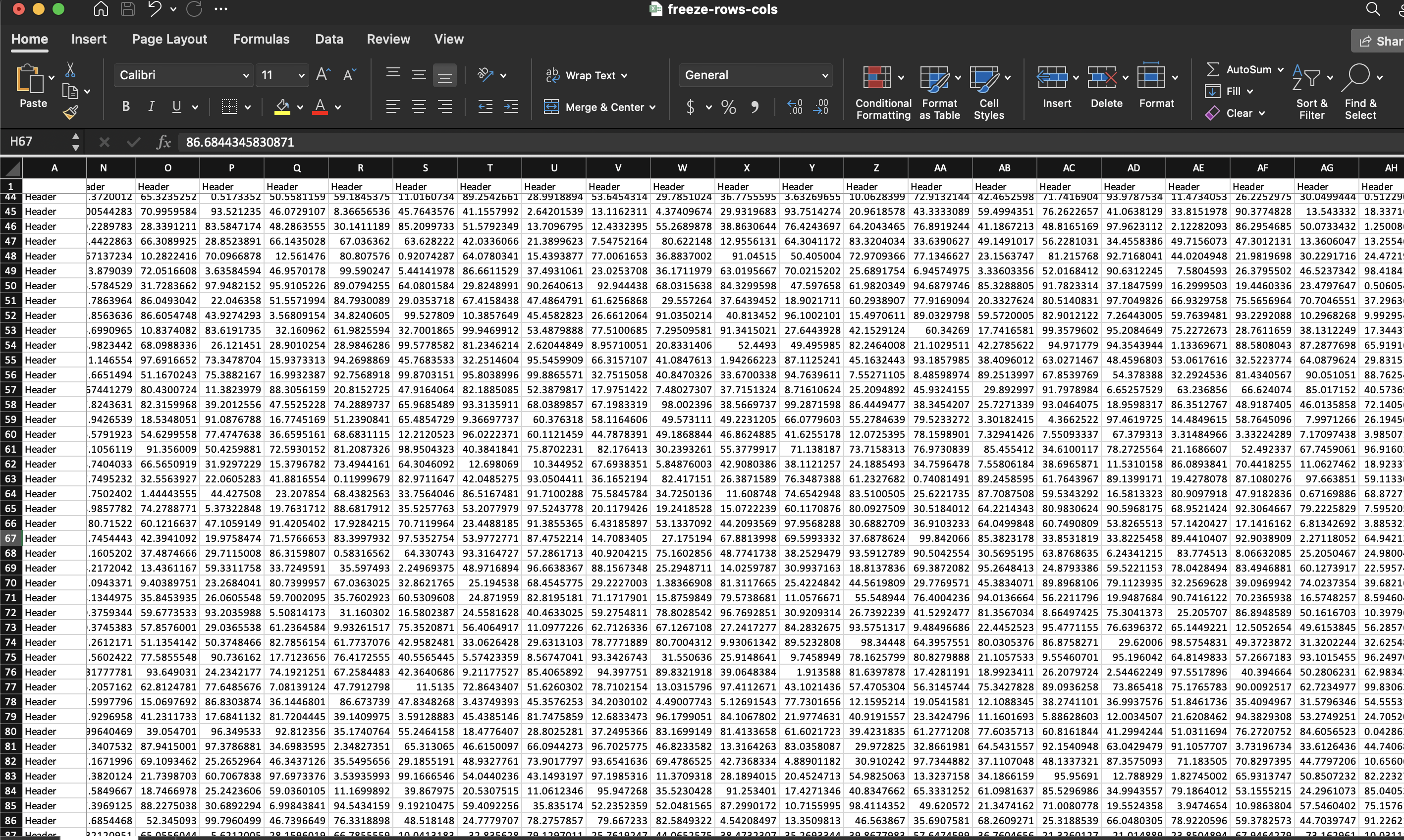

Sample output
