Table Extraction

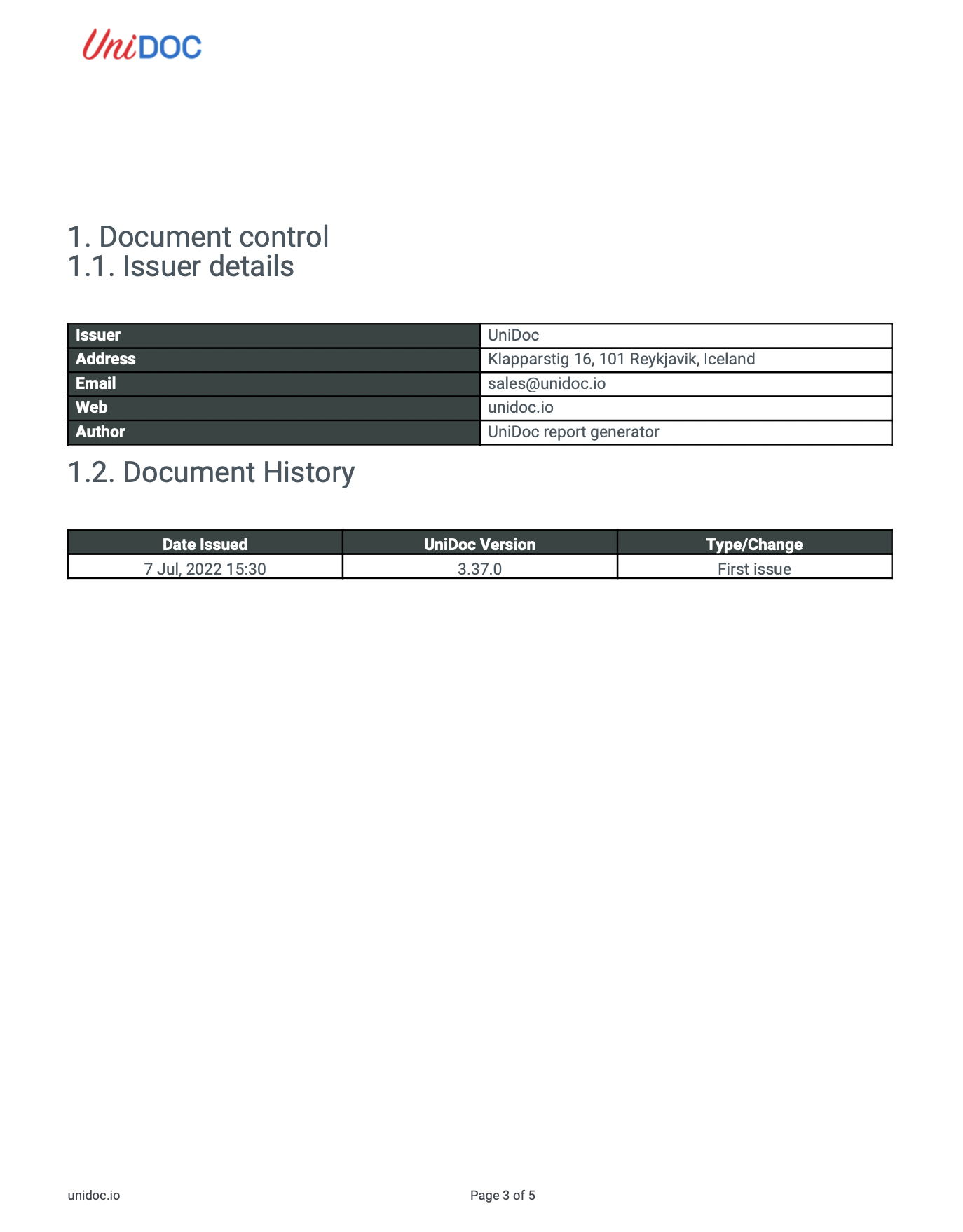

A PDF has no table structure to read back: a table is just text and lines placed at coordinates. The extractor infers the grid from those positions, so table extraction is a best-effort reconstruction rather than a lookup.

Tables come off the PageText, not the extractor directly:

ex, err := extractor.New(page)
if err != nil {
    return err
}

pageText, _, _, err := ex.ExtractPageText()
if err != nil {
    return err
}

for _, table := range pageText.Tables() {
    for _, row := range table.Cells {
        for _, cell := range row {
            fmt.Print(cell.Text, "\t")
        }
        fmt.Println()
    }
}

A TextTable carries its bounding box, its width and height in cells as W and H, and Cells as a row-major slice of slices. Each TableCell has the extracted Text plus its own bounding box, which is what lets you match a cell back to a position on the page.

Extraction mode matters here

Tables() returns results only in ExtractionModeLayout, the default, because table detection is part of what that mode does. In ExtractionModeGrid it returns an empty slice, and plain mode skips table building altogether. If Tables() comes back empty on a document that visibly has tables, check the mode before anything else.

For a table whose columns you only need visually aligned rather than as cells, PageText.GridText() is often a better fit and works from any mode. See text extraction for the mode comparison.

Run the example

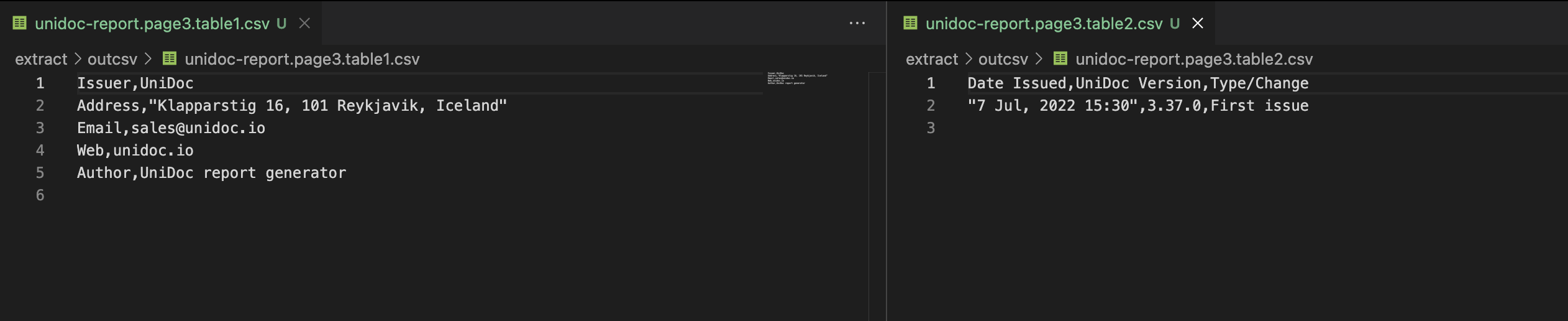

The example converts the tables of each page to CSV. extractPageTables does the extraction, asStringTable flattens a TextTable into strings, and normalizeTable tidies whitespace before writing. The remaining helpers deal with command line paths and output directories.

git clone https://github.com/unidoc/unipdf-examples.git
cd unipdf-examples/extract
go run pdf_tables.go input.pdf

If this is your first time using UniPDF, follow the getting started guide to create an API key and set up your development environment.
