Create Form Fields

Turning a static page into a fillable form means creating fields, positioning their widget annotations over the page, and attaching the whole collection to the document as an AcroForm. The annotator package provides constructors for the common field types so you don’t have to assemble the field dictionaries by hand.

Every field is two things at once: a field entry, which the AcroForm owns, and a widget annotation, which the page owns. Both registrations are required. A field that is not in form.Fields is not part of the form; a widget that was never added to the page is never drawn.

Doing it

form := model.NewPdfAcroForm()

opt := annotator.TextFieldOptions{MaxLen: 40}
textf, err := annotator.NewTextField(page, "full_name", []float64{123.97, 619.02, 343.99, 633.6}, opt)
if err != nil {
    return err
}

*form.Fields = append(*form.Fields, textf.PdfField)
page.AddAnnotation(textf.Annotations[0].PdfAnnotation)

form.Fields is a *[]*PdfField, so appending needs the dereference. The rect argument is [x1, y1, x2, y2] in PDF user space, with the origin at the bottom left of the page.

The three constructors and their options:

All three return an error if page is nil, name is empty, or rect is not exactly four values.

NewCheckboxField is the one that builds a complete appearance stream. Its two states are named Off and Yes, so a later fill has to use Yes to check the box. The glyph is a ZapfDingbats check mark drawn in blue, and it is not configurable through the options struct.

For a checkbox to render, the ZaDb font must be in the form’s default resources:

zapfdb := model.NewStandard14FontMustCompile(model.ZapfDingbatsName)
form.DR = model.NewPdfPageResources()
form.DR.SetFontByName("ZaDb", zapfdb.ToPdfObject())

NewComboboxField sets Opt from Choices and sets the Combo flag, which is what makes it a dropdown rather than a list box.

Attaching the form

The reader’s existing AcroForm is copied to the writer by default. When you are building a new form, suppress that and set yours instead:

var form *model.PdfAcroForm

opt := &model.ReaderToWriterOpts{
    SkipAcroForm: true,
    PageProcessCallback: func(pageNum int, page *model.PdfPage) error {
        if pageNum == 1 {
            form = createForm(page)
        }
        return nil
    },
}

pdfWriter, err := pdfReader.ToWriter(opt)
if err != nil {
    return err
}
if err := pdfWriter.SetForms(form); err != nil {
    return err
}

The callback runs while ToWriter copies each page, before the page is added to the writer, which is where you have the *PdfPage you need for the widget rectangles. Returning an error from it aborts ToWriter. Without SkipAcroForm: true the writer would take the source document’s form and your SetForms call would replace it, losing any fields the original had.

To add fields to a form that already exists, read pdfReader.AcroForm, append to its Fields, and leave SkipAcroForm unset.

Limitations

Text fields and combo boxes are created without an appearance stream. Interactive viewers generate one from DA when the field is focused, so the form works, but anything that only renders the page as-is shows an empty box. Generate appearances with annotator.FieldAppearance before flattening; see fill and flatten with appearance.

TextFieldOptions.FontName and FontSize are only used when TextColor is also set, because they are written as part of the DA string that the color triggers. Set TextColor if you want a specific font or size to take effect. See custom text color for the details of that appearance string.

Nothing checks that field names are unique, that rectangles fall inside the page, or that widgets don’t overlap. Duplicate partial names in particular will make form.Fill write the same value into every field that shares the name.

Radio groups and list boxes have no constructor in annotator. Building those means constructing model.PdfFieldButton with the radio flag, or model.PdfFieldChoice without the combo flag, and attaching the widget annotations yourself. Push buttons for submit and reset actions do have constructors, NewFormSubmitButtonField and NewFormResetButtonField.

Run the example

createForm builds the AcroForm and the widget annotations for a page, driven by the textFieldsDef, checkboxFieldDefs and choiceFieldDefs tables at the top of the file. addFormToPdf wires it into the writer. Input and output paths are hardcoded, so it reads template1.pdf from the example directory and writes template1_with_form.pdf.

The Checked value in checkboxFieldDefs is not passed through to CheckboxFieldOptions in this example, so both checkboxes come out unchecked.

git clone https://github.com/unidoc/unipdf-examples.git
cd unipdf-examples/forms
go run pdf_form_add.go

If this is your first time using UniPDF, follow the getting started guide to create an API key and set up your development environment.

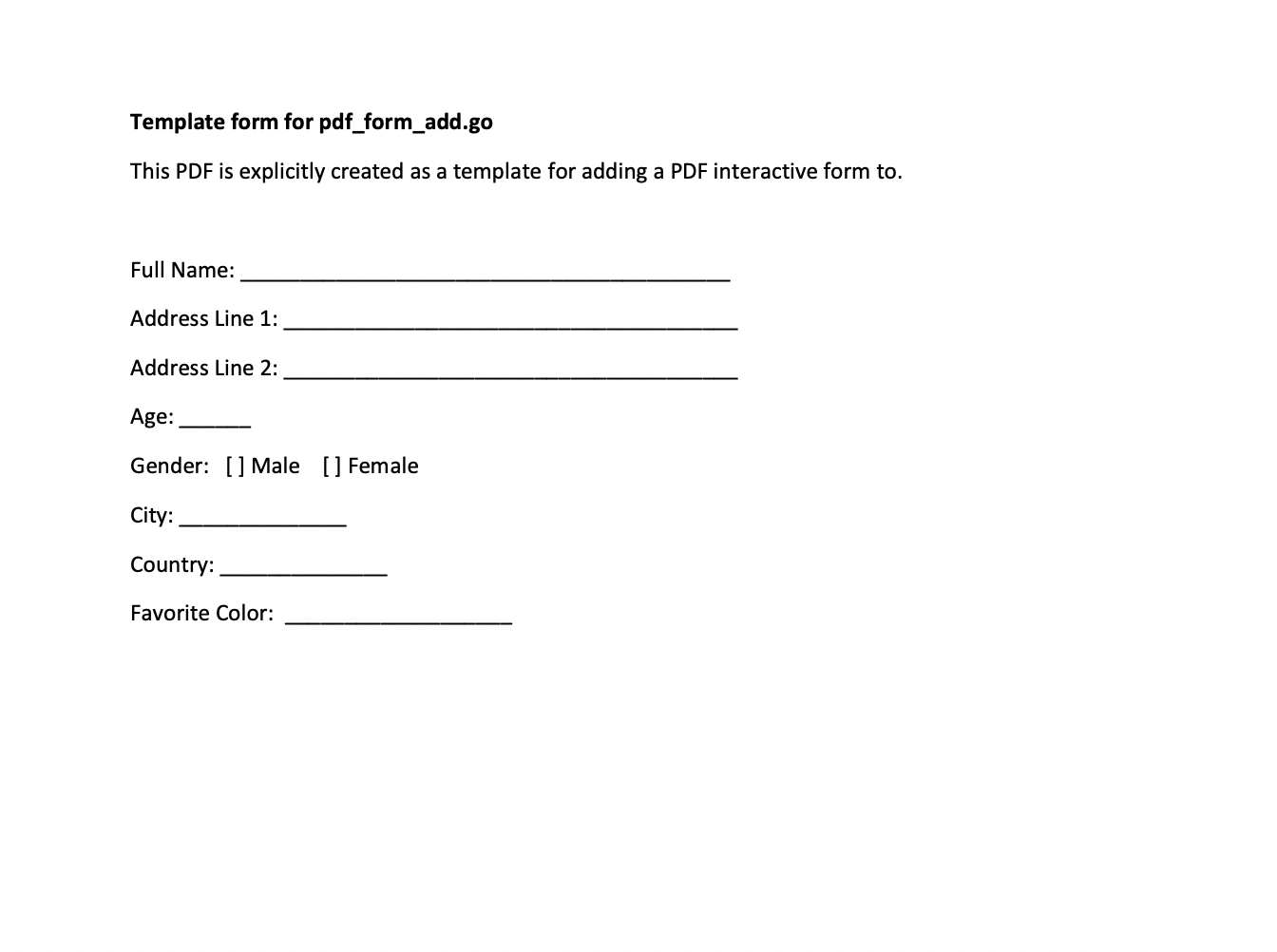

Sample input

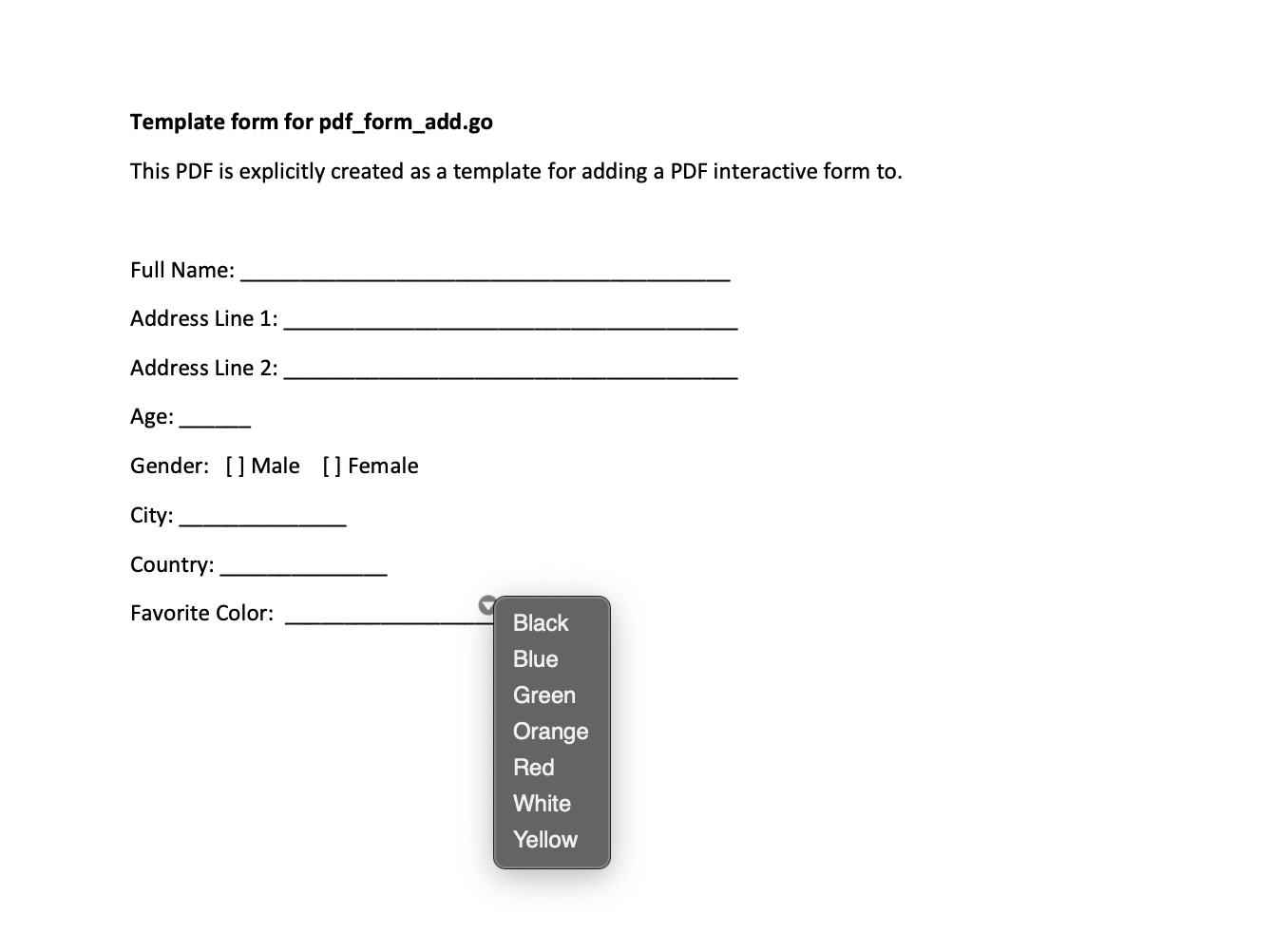

Sample output

The fields are interactive: text can be typed, the checkboxes toggle, and the combo box drops down its list of colors.
