Validate PDF/A-1 Standard

Validation checks an existing file against a profile’s rules and returns the ones it breaks. It needs a CompliancePdfReader, which parses the file in compliance mode and keeps the byte-level detail that PDF/A-1’s header, trailer and cross-reference rules depend on. A plain PdfReader does not carry that information and will not type-check against ValidateStandard.

Doing it

detailedReader, err := model.NewCompliancePdfReader(inputFile)
if err != nil {
    return err
}

profile := pdfa.NewProfile1B(nil)
if err := profile.ValidateStandard(detailedReader); err != nil {
    fmt.Printf("%s: %v\n", profile.StandardName(), err)
}

nil means nothing was found. Anything else is a pdfa.VerificationError holding a ViolatedRule per failed check, with the ISO clause number in RuleNo and the requirement text in Detail, sorted by clause. One reader can be validated against several profiles in turn.

Checking against both 1A and 1B, as the example does, is worth understanding before reading its output. The pdfaid:conformance comparison follows the conformance hierarchy, so a file claiming 1A satisfies the 1B check but a file claiming 1B fails the 1A check. Expect one failure when validating a 1B file against both profiles. 1A also runs the logical structure checks, which want MarkInfo Marked set to true, a StructTreeRoot in the catalog, and every non-standard structure type mapped in the role map.

What PDF/A-1 checks that later parts do not

Some of the reported rules only exist in part 1, and seeing them is a signal that the document would validate against a later part:

• 6.1.11 embedded files. Any file specification with an EF entry, or an EmbeddedFiles entry in the name dictionary, is a violation. Parts 2 and later allow attachments.
• 6.4 transparency. A transparency group on a page or XObject is a violation, and so is an ExtGState with an SMask other than None, a CA or ca below 1.0, or a blend mode other than Normal or Compatible. Part 2 permits all of it.
• 6.1.13-1 optional content. An OCProperties entry in the catalog is a violation.
• 6.1.10-2 LZW. The LZWDecode filter is not permitted, in streams or inline images.
• 6.1.12 implementation limits.
• 6.1.5 the document information dictionary has to agree with the XMP metadata.
• 6.1.3-4 a linearized file has to carry a matching /ID in the first-page trailer and the main trailer.

Limitations

Validation is not complete, and the package documents itself as experimental. Several clauses exist in the source as unimplemented placeholders, including parts of the object syntax checks, the rendering intent check, some form field appearance rules, and the graphics state nesting depth and CID range implementation limits. A clean result means the document passed the rules UniPDF checks. Use veraPDF as the oracle for a conformance claim.

Run the example

pdf_validate_standard.go opens a file with NewCompliancePdfReader, then loops over a slice of model.StandardImplementer holding NewProfile1A and NewProfile1B, printing the violations for each. Adapting it to a different part means changing that slice.

git clone https://github.com/unidoc/unipdf-examples.git
cd unipdf-examples/pdfa
go run pdf_validate_standard.go <input.pdf>

If this is your first time using UniPDF, follow the getting started guide to create an API key and set up your development environment.

A conforming file prints only the timing line, since nothing is reported:

Processing time: 42.82 ms

Sample output

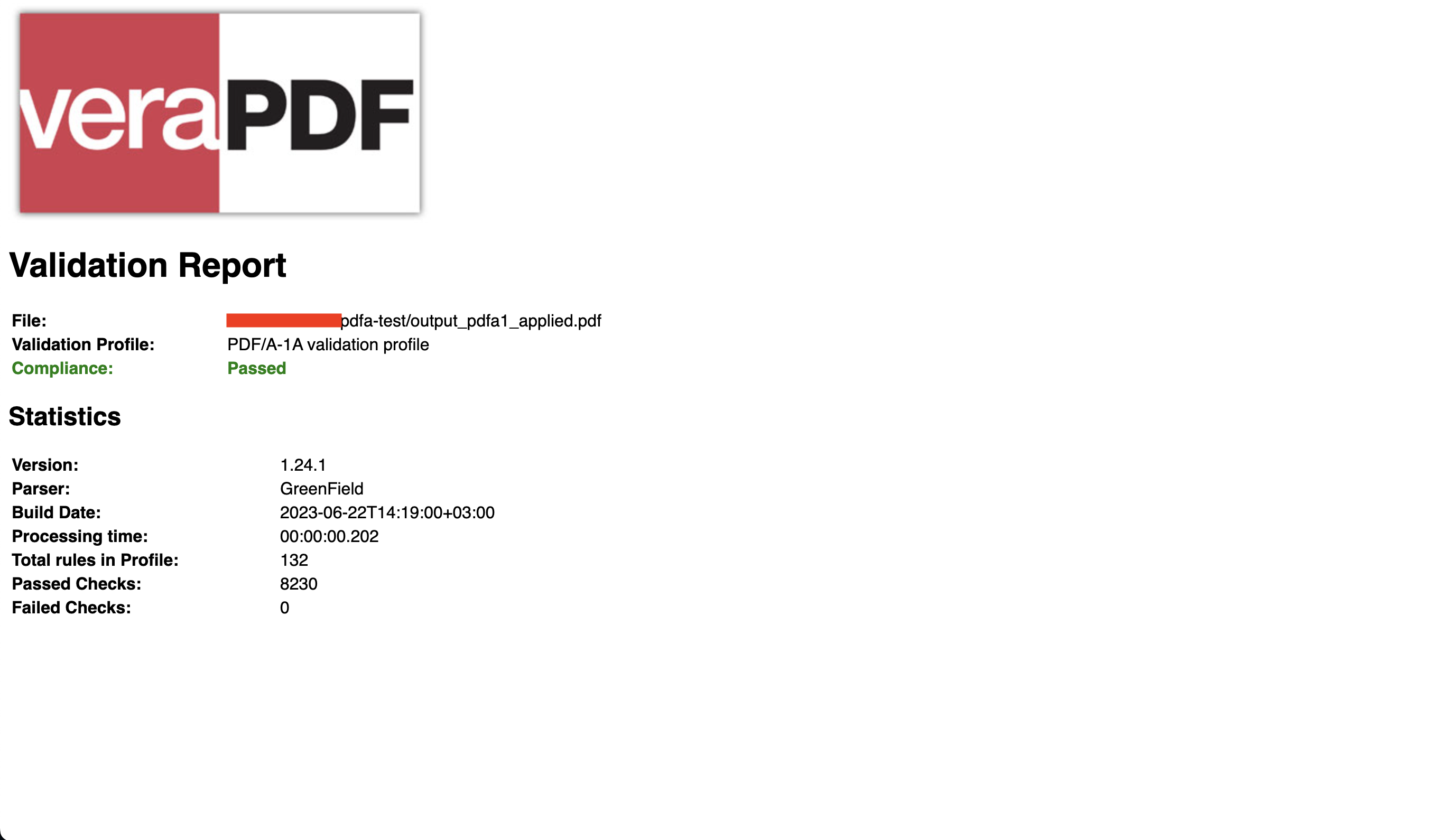

The same file checked with veraPDF:
