Drop Caps

A drop cap enlarges the opening character or word of a paragraph and narrows the lines next to it so the text wraps around. StyledParagraph.SetDropCaps handles the sizing and the reduced line widths, so the paragraph is written normally and the drop cap is configured afterwards.

Two things are chosen independently: how far the effect extends down the paragraph (Type) and how much text is enlarged (Scope).

DropCapsDrop is the conventional book and magazine treatment. DropCapsInline is better suited to short paragraphs, where returning to full width for one or two lines looks unbalanced. DropCapsFirstWord is the usual choice for chapter openings.

Doing it

p := c.NewStyledParagraph()
p.Append("This is a paragraph with a drop cap...").Style = textStyle

p.SetDropCaps(creator.DropCapsOptions{
    Type:     creator.DropCapsDrop,
    Scope:    creator.DropCapsFirstCharacter,
    NumLines: 3,
    Gap:      5.0,
})

if err := c.Draw(p); err != nil {
    return err
}

NumLines defaults to 3 and Gap to 5 points; a zero or negative value for either falls back to the default rather than producing a flush or zero-height drop cap. Under DropCapsInline there are no “first N lines”, so NumLines there controls the drop cap’s size only.

Three convenience wrappers cover the common combinations: SetDropCapsFirstCharacter(numLines, gap), SetDropCapsFirstWord(numLines, gap) and SetDropCapsInline(scope, numLines, gap).

To style the drop cap differently from the body text, set Style in the options or call SetDropCapsWithStyle(dropType, scope, numLines, gap, style):

dropCapStyle := creator.TextStyle{
    Font:  boldFont,
    Color: creator.ColorRGBFrom8bit(200, 0, 0),
}
p.SetDropCapsWithStyle(creator.DropCapsDrop, creator.DropCapsFirstCharacter, 3, 5.0, &dropCapStyle)

FontSize in that style is ignored. The drop cap’s size is derived from NumLines and the paragraph’s line height. Everything else in the style applies, including Font, Color, OutlineColor and CharSpacing. With no style supplied, the drop cap inherits the style of the paragraph’s first chunk.

Limitations

Drop caps do not work with right-to-left text. If the first chunk’s text is detected as RTL, the options are dropped during wrapping and the paragraph is drawn without a drop cap. The only signal is a debug log line, so there is no error to check for.

The scope is taken from the first chunk only. DropCapsFirstWord on a paragraph whose first chunk ends mid-word will enlarge just that fragment.

GetDropCapsOptions returns the options currently set, or nil. It returns nil after an RTL paragraph has been drawn, since the internal options were cleared.

Run the example

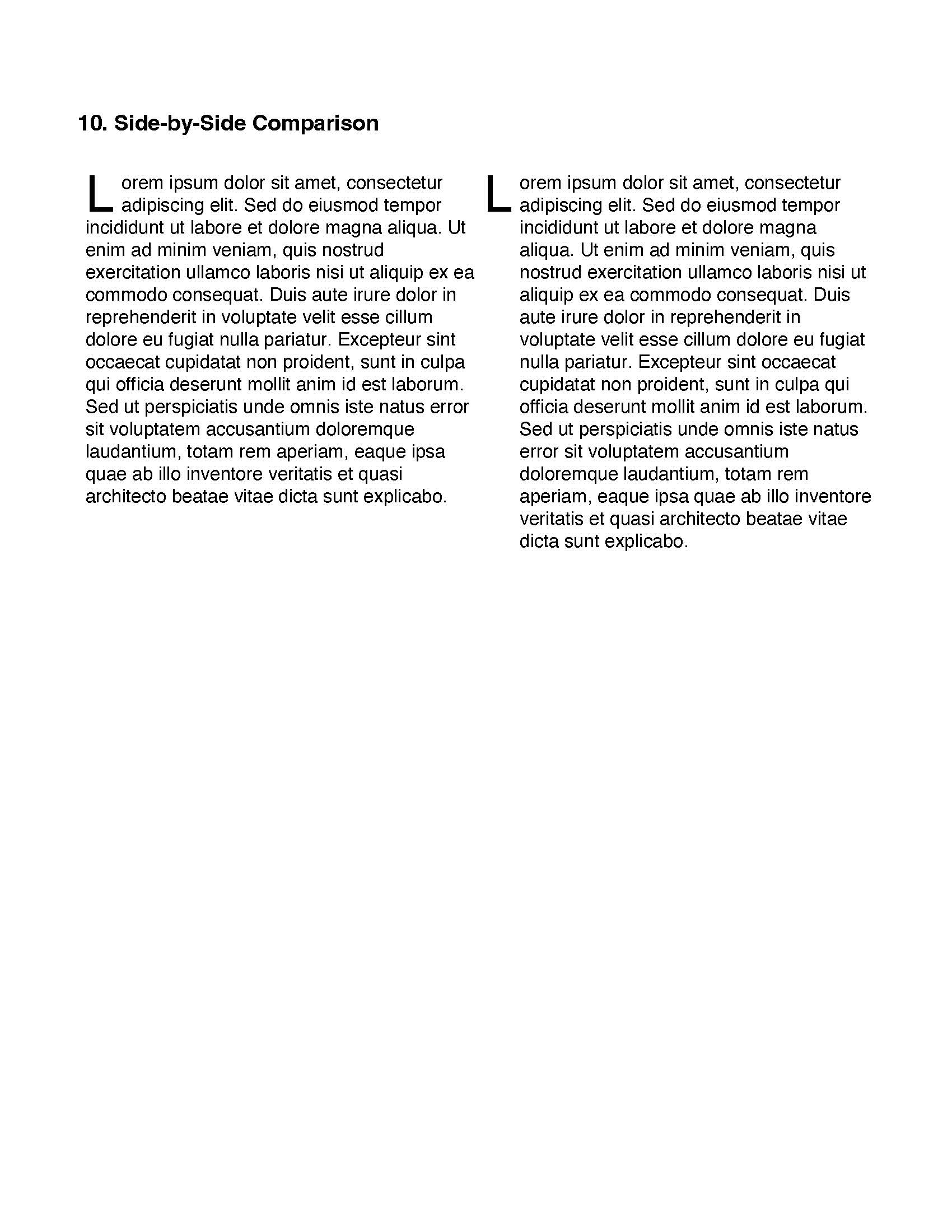

The example builds ten paragraphs across three pages, each demonstrating one combination. Examples 1 to 5 cover the plain types and scopes, 6 to 9 add custom styles in red, blue, green and purple, and 10 puts a DropCapsDrop and a DropCapsInline paragraph in adjacent table cells for comparison.

git clone https://github.com/unidoc/unipdf-examples.git
cd unipdf-examples/text
go run pdf_drop_caps.go

If this is your first time using UniPDF, follow the getting started guide to create an API key and set up your development environment.

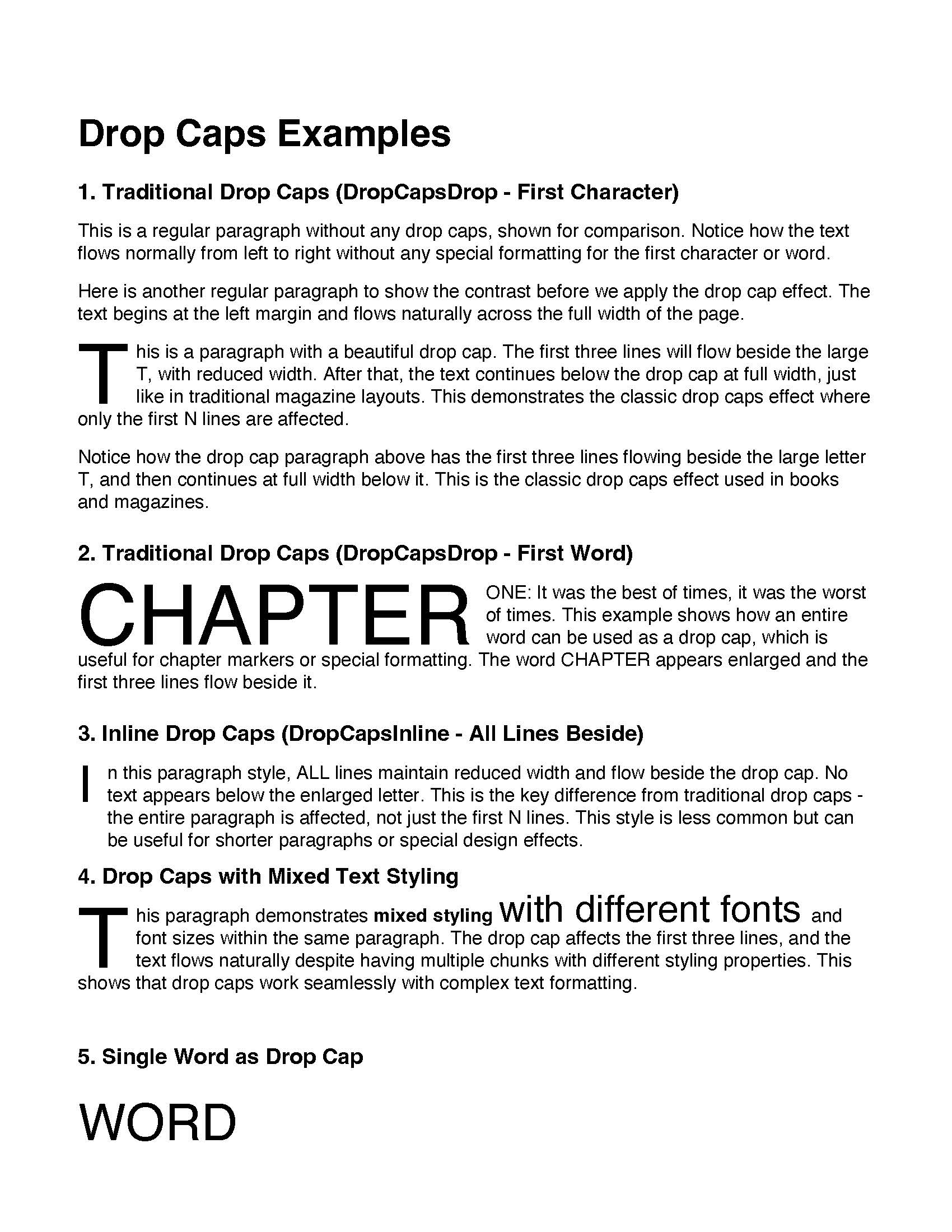

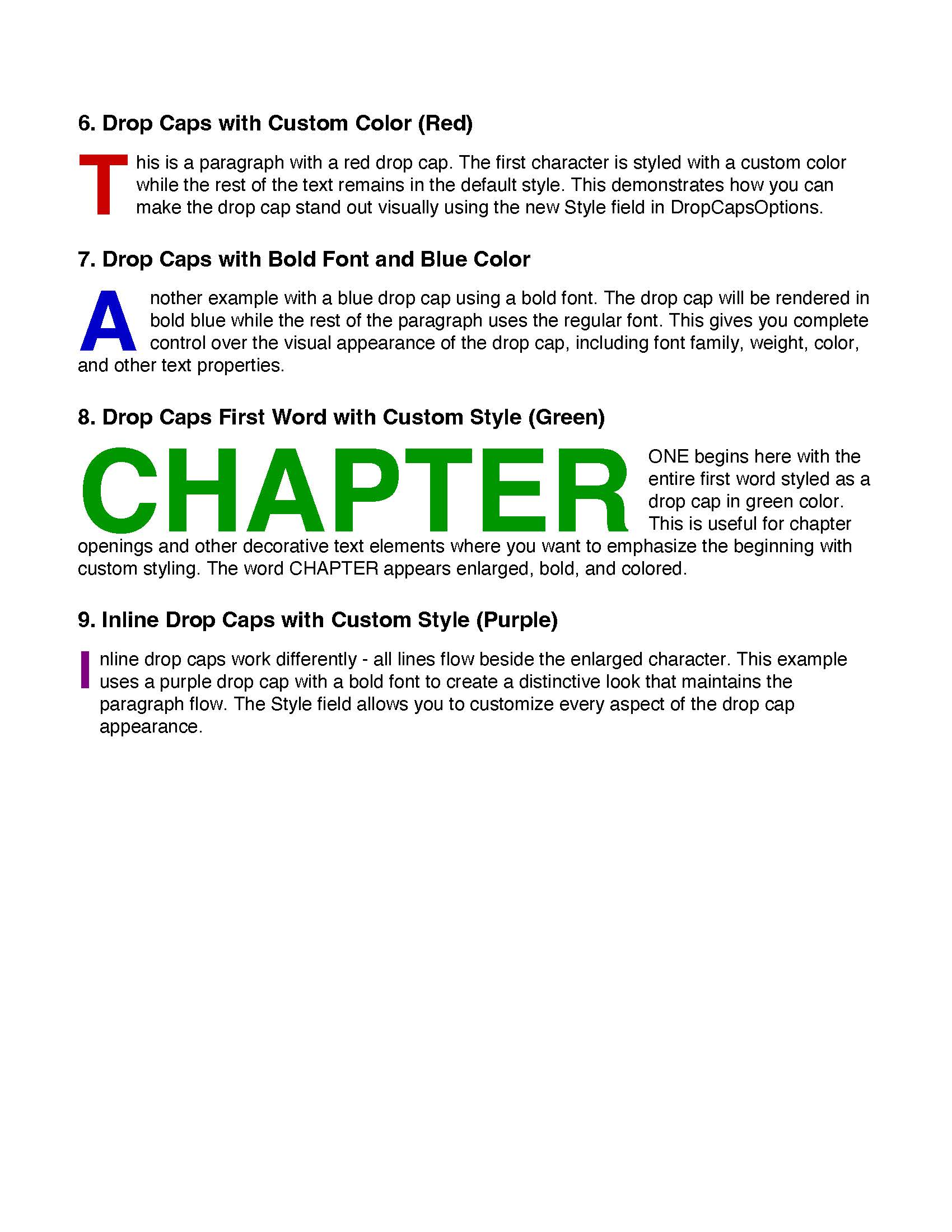

Sample output
